Oil & Chemical Resistant Garage Floor Tiles | 10mm PVC Workshop Flooring Diesel Proof | Acid & Solvent Safe Industrial UK

Oil & Chemical Resistant Garage Floor Tiles | 10mm PVC Workshop Flooring Diesel Proof | Acid & Solvent Safe Industrial UK

(210)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Garage and workshop

When garage and workshop environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

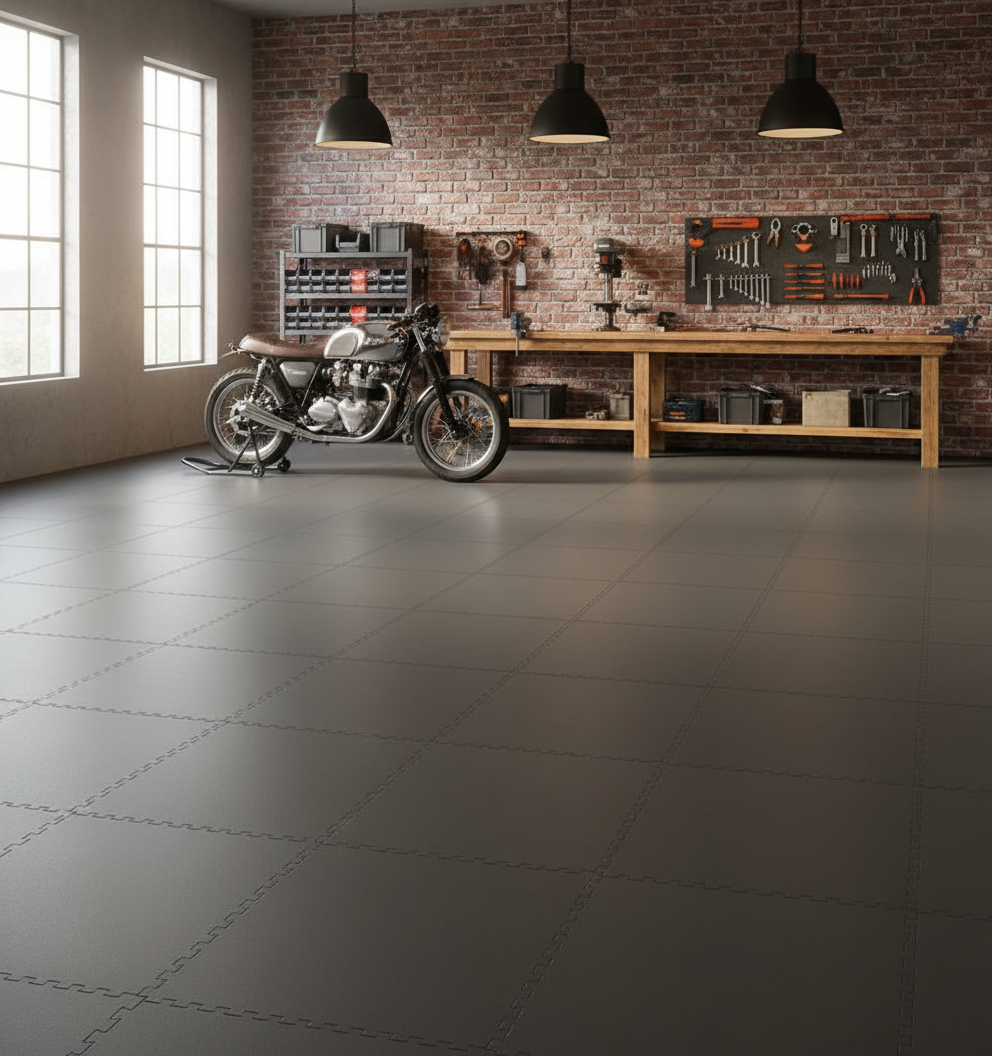

Garage and workshop: These tiles are specifically engineered for the demands of garage and workshop environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

Aircraft Hangar Flooring Tiles 10mm PVC | Aviation Workshop Floor Protection | Jet Fuel Resistant 5T Load UK

Aircraft Hangar Flooring Tiles 10mm PVC | Aviation Workshop Floor Protection | Jet Fuel Resistant 5T Load UK

(272)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Aircraft hangar and aviation

When aircraft hangar and aviation environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance
Aviation Fuel (Jet-A, Avgas)	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Aircraft hangar and aviation: These tiles are specifically engineered for the demands of aircraft hangar and aviation environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

HGV Garage Floor Tiles 10mm Ultra Heavy | Commercial Vehicle Workshop Flooring | Oil & Diesel Resistant 5T Rated UK

HGV Garage Floor Tiles 10mm Ultra Heavy | Commercial Vehicle Workshop Flooring | Oil & Diesel Resistant 5T Rated UK

(149)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for HGV and commercial vehicle

When HGV and commercial vehicle environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

HGV and commercial vehicle: These tiles are specifically engineered for the demands of HGV and commercial vehicle environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

Heavy Duty Garage Floor Tiles 10mm PVC | Interlocking Oil Resistant Workshop Flooring | 5T Load Rated 500mm UK

Heavy Duty Garage Floor Tiles 10mm PVC | Interlocking Oil Resistant Workshop Flooring | 5T Load Rated 500mm UK

(409)

£21.50 £26.88

-20%

Heavy-Duty 10mm Garage Floor Tiles – Professional-Grade Protection

Transform your garage from a dusty concrete slab into a professional-grade workspace with these 5 tonnes rated heavy-duty PVC floor tiles. Engineered specifically for UK garages where oil spills, heavy tools, and vehicle traffic are daily realities – not occasional challenges.

✓ 5 Tonnes Load Rating | ✓ Oil & Fuel Resistant | ✓ Zero Cure DIY Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm heavy-duty
Load Rating	5 tonnes point load (BS EN ISO 24344 verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Engine oil, transmission fluid, brake fluid, coolant, petrol, diesel
Temperature Range	-20°C to +60°C (ideal for unheated UK garages)
Weight per Tile	2.5kg
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Why Upgrade Your Garage Floor?

A bare concrete garage floor isn't just unattractive – it's a functional liability. Concrete absorbs oil, creating permanent stains. It generates dust that coats everything. It's cold underfoot in winter. And it offers zero protection when you drop tools or work under vehicles.

Problems Heavy-Duty Tiles Solve

Oil stains: Closed-cell PVC prevents absorption – spills stay on surface for easy cleanup
Concrete dust: Complete coverage eliminates the grey dust that coats tools and vehicles
Cold floors: PVC provides thermal insulation, making winter garage work bearable
Knee pain: Anti-fatigue properties reduce strain during extended work sessions
Dropped tools: Impact absorption protects both tools and floor surface
Cracked concrete: Tiles bridge and cover existing damage without repair

Understanding the 5 Tonnes Load Rating

Our 5 tonnes point load rating means these tiles handle anything a garage can throw at them – from hydraulic jacks to rolling toolboxes to fully-laden vehicles.

What This Means For Your Garage

Jack stands and axle stands: Concentrated weight on small contact points – no problem
Hydraulic trolley jacks: Rolling loads across the floor without compression marks
Engine hoists and lifts: Heavy equipment on casters or wheels
Vehicle traffic: Daily driving in and out without wear or damage
Motorcycle stands: Side stands and centre stands without indentation
Heavy toolboxes: Roll-cab tool chests with full weight capacity

Testing Standard: BS EN ISO 24344

This isn't a marketing claim – it's independently verified to British/European testing standards. The 5 tonnes rating represents concentrated load through a 10mm diameter indentor, simulating real-world point contacts like jack stands and equipment feet.

Oil & Chemical Resistance: Garage-Proof Protection

Garages mean fluids. Engine oil, transmission fluid, brake fluid, coolant, petrol, diesel – these tiles resist them all. The closed-cell PVC construction creates a complete barrier that prevents absorption.

Resistance Verified Against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Brake Cleaner & Degreasers	✓ Full Resistance

Cleanup is simple: Fluids stay on the surface. Wipe with a rag or mop with degreaser. No staining, no absorption, no permanent marks.

Material Science: Why These Tiles Outperform

Virgin PVC Construction

We use 100% virgin PVC – not recycled material with unknown additives. This ensures consistent chemical resistance, predictable load performance, and documented specifications you can rely on.

Closed-Cell vs Open-Cell

Closed-cell construction means zero fluid absorption. Cheaper open-cell tiles absorb oil over time, leading to swelling, odours, and degradation. Our tiles remain impermeable throughout their 20+ year lifespan.

10mm Thickness Advantage

The 10mm thickness provides superior impact absorption compared to thinner 5mm or 7mm alternatives. When you drop a socket or ratchet, the tile absorbs the impact – protecting both the tool and the floor.

Why PVC Beats the Alternatives

vs Epoxy: No 72-hour cure time, no professional application, no cracking on damp concrete
vs Paint: Doesn't peel, chip, or require annual reapplication
vs Rubber: Better chemical resistance, longer lifespan, lower cost per year
vs Polypropylene: Maintains flexibility in cold UK winters, superior oil resistance

UK Compliance & Safety Standards

Fire Rating: Bfl-s1

Classified to EN 13501-1 European fire standards:

B: Limited contribution to fire spread
fl: Flooring-specific classification
s1: Minimal smoke production

This rating meets Building Regulations requirements and typical insurance specifications for domestic and commercial garages.

Slip Resistance: R10

Rated to DIN 51130 – the German standard for slip resistance with oil contamination. The textured surface maintains grip even when wet or oily, meeting HSE requirements for workspace safety.

DIY Installation: Transform Your Garage in Hours

No contractors. No curing time. No specialist tools. Install yourself over a weekend and use immediately.

What You Need

Broom (for sweeping)
Tape measure
Utility knife (for cutting)
Rubber mallet (helpful but not essential)

Installation Steps

Prepare: Sweep garage floor clean. No need to repair cracks or level – tiles bridge imperfections up to 3mm.
Plan: Measure your garage. Calculate tile count using our calculator (4 tiles per m²).
Start: Begin in one corner, working outward. Leave 5mm gap at walls for expansion.
Connect: Align tiles and press firmly – interlocking edges click together by hand.
Cut: Score with utility knife and snap. No power tools required.
Finish: Install ramp edges at garage door for smooth vehicle entry.

Time Estimate

Single garage (15m²): 1.5-2 hours with one person
Double garage (30m²): 2-3 hours with two people

Subfloor Requirements

Installs over any hard surface: bare concrete, painted concrete, existing tiles, even slightly uneven floors. No priming, moisture testing, or substrate preparation needed.

Garage Flooring Options Compared

Factor	PVC Tiles	Epoxy Coating	Garage Paint	Rubber Mats
Installation	DIY, hours	Professional, days	DIY, days	DIY, hours
Cure Time	Zero	72+ hours	24+ hours	Zero
Oil Resistance	Excellent	Good	Poor	Moderate
Repairs	Replace tile	Recoat entire floor	Repaint	Replace mat
Lifespan	20+ years	5-10 years	1-3 years	5-10 years
Cold Weather	Excellent	Can crack	Can peel	Good
Relocatable	Yes	No	No	Yes

Cost Analysis: Investment vs Value

Typical Garage Costs

Single garage (15m²): 60 tiles = £1,290
Double garage (30m²): 120 tiles = £2,580
Triple garage (45m²): 180 tiles = £3,870

Free UK delivery included. Ramp edges sold separately.

20-Year Cost Comparison

PVC Tiles: £1,290 one-time = £64.50/year
Epoxy (recoat every 7 years): £800 × 3 = £2,400 = £120/year
Paint (annual touch-up): £150 × 20 = £3,000 = £150/year

Hidden Value

Zero downtime: No lost weekends waiting for curing
DIY savings: No contractor fees
Property value: Professional garage finish adds appeal
Relocatable: Take your floor when you move house

Maintenance: Keep It Simple

Weekly

Sweep or blow off debris
Mop with warm water and mild detergent

As Needed

Oil spills: Wipe immediately with rag
Heavy contamination: Use automotive degreaser
Deep clean: Pressure wash up to 100 bar

Never Required

No sealing
No waxing
No recoating
No specialist treatments

Environmental Credentials

100% recyclable at end of life
20+ year lifespan reduces replacement waste
No VOC emissions during installation
No adhesives required – eliminates chemical bonding agents
Relocatable – reuse when moving, don't dispose

Frequently Asked Questions

Will these tiles support a car jack?

Yes. The 5 tonnes point load rating easily handles hydraulic jacks, axle stands, and any standard garage equipment. The tiles are specifically designed for concentrated loads.

Can I install over cracked or uneven concrete?

Yes. The rigid interlocking structure bridges cracks and imperfections up to 3mm. No need to repair your existing floor – simply sweep clean and install directly over it.

Will oil stain these tiles?

No. The closed-cell PVC construction prevents oil absorption. Spills stay on the surface and wipe clean with a rag. No staining, no permanent marks.

How cold can my garage get?

These tiles perform from -20°C to +60°C. Unlike polypropylene alternatives that become brittle in cold, PVC maintains flexibility throughout UK winters in unheated garages.

Can I install this myself with no DIY experience?

Absolutely. The tiles simply click together – no tools, adhesive, or special skills required. If you can sweep a floor and use a tape measure, you can install these tiles.

What if I damage a tile?

Simply lift the surrounding tiles, remove the damaged one, and click in a replacement. Takes under 2 minutes. No need to replace the entire floor.

Are these tiles slippery when wet?

No. The R10 anti-slip surface maintains grip even when wet or contaminated with oil. This meets HSE standards for workplace safety.

Will driving over the tiles daily damage them?

No. These tiles are designed for vehicle traffic. The 5 tonnes load rating and 20+ tonnes rolling load capacity means daily driving has no effect on the tiles.

Can I take the floor with me if I move house?

Yes. The tiles simply lift up and reinstall in your new garage. No adhesive means no damage to the underlying floor and complete portability.

Do you offer samples?

Yes! We offer free samples so you can check the quality, colour, and texture before committing. Visit our Free Samples page to request yours.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

7mm Heavy-Duty Interlocking PVC Garage Floor Tiles | Industrial Grade | UK Stock

7mm Heavy-Duty Interlocking PVC Garage Floor Tiles | Industrial Grade | UK Stock

(374)

From £17.90

7mm Heavy-Duty Garage Floor Tiles – Professional Results, Practical Thickness

The 7mm thickness delivers the perfect balance of performance and value for domestic garages and light commercial workshops. All the benefits of heavy-duty PVC interlocking tiles – oil resistance, easy installation, 20-year lifespan – at a thickness optimised for typical garage use.

✓ Heavy-Duty Load Rating | ✓ Oil & Chemical Resistant | ✓ DIY Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	Heavy-duty (verified to BS EN ISO 24344)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated)
Fire Rating	Bfl-s1 (EN 13501-1)
Chemical Resistance	Oils, fuels, coolant, brake fluid
Temperature Range	-20°C to +60°C
Connection	Precision interlocking – no adhesive
Warranty	10 years

7mm vs 10mm: Which Thickness Do You Need?

Choose 7mm When:

Primary use is domestic garage (car storage, DIY, light workshop)
Traffic is mainly foot traffic and occasional vehicle movement
Equipment is standard garage tools, not industrial machinery
Budget efficiency is a priority
Clearance under garage doors is limited

Choose 10mm When:

Heavy equipment or machinery will be used
Forklift or HGV traffic is expected
Maximum impact absorption is required
Commercial or industrial application

Why 7mm Is Ideal for Most Garages

Most UK domestic garages don't need industrial-grade 10mm tiles. The 7mm thickness handles:

Car and motorcycle storage: Daily driving in and out
Trolley jacks and axle stands: Routine maintenance tasks
Tool chests and workbenches: Standard garage equipment
Dropped tools: Impact absorption for everyday accidents

The 7mm profile also provides practical advantages:

Door clearance: Less likely to interfere with garage doors
Transition height: Smaller step at doorways
Cost efficiency: Lower material cost for same coverage

Complete Oil & Chemical Protection

The 7mm tiles use identical closed-cell PVC construction as our 10mm range – providing complete fluid barrier protection:

Engine Oil	✓ Full Resistance
Brake Fluid	✓ Full Resistance
Coolant	✓ Full Resistance
Petrol & Diesel	✓ Full Resistance
Degreasers	✓ Full Resistance

DIY Installation in Hours

What You Need

Broom
Tape measure
Utility knife

Installation Steps

Sweep garage floor clean
Start in corner, work outward
Click tiles together by hand
Cut edge tiles with utility knife
Install ramp edges at door

Time Required

Single garage: 1.5-2 hours | Double garage: 2-3 hours

UK Compliance

Fire Rating: Bfl-s1

Meets EN 13501-1 requirements for commercial and domestic premises.

Slip Rating: R10

Anti-slip surface rated to DIN 51130. Safe when wet or oily.

Cost Analysis

7mm tiles offer excellent value for domestic applications:

Single garage (15m²): Approx. £XXX
Double garage (30m²): Approx. £XXX

20+ year lifespan means cost per year is minimal compared to paint or epoxy alternatives requiring regular reapplication.

Maintenance

Weekly sweep and mop
Wipe oil spills immediately
No sealing or waxing required
Pressure wash for deep cleaning

Frequently Asked Questions

Is 7mm thick enough for a garage?

Yes. 7mm is ideal for most domestic garages handling car storage, DIY work, and standard garage equipment. Only upgrade to 10mm if you have heavy machinery or commercial/industrial loads.

Can I drive my car on 7mm tiles?

Absolutely. 7mm tiles are designed for vehicle traffic. Cars, motorcycles, and vans drive on and off daily without any damage to the tiles.

Will a trolley jack damage 7mm tiles?

No. Standard trolley jacks and axle stands work fine on 7mm tiles. The load rating handles typical garage maintenance equipment without compression damage.

Do 7mm tiles have the same oil resistance as 10mm?

Yes. Both use identical closed-cell PVC construction. Oil resistance, chemical resistance, and fluid barrier properties are the same regardless of thickness.

Will 7mm tiles clear my garage door?

Usually yes. The 7mm profile is less likely to interfere with garage door clearance than thicker alternatives. Measure your current clearance – 7mm plus optional ramp edge is typically 10-15mm total.

Can I mix 7mm and 10mm tiles?

Not recommended. Different thicknesses create a step hazard. Choose one thickness for your entire floor for safety and appearance.

How long do 7mm tiles last?

20+ years with normal garage use. The virgin PVC construction and UV stability ensure long-term performance without degradation.

Are 7mm tiles slippery?

No. R10 anti-slip rating means the textured surface maintains grip even when wet or contaminated with oil.

Can I install over painted concrete?

Yes. Tiles install over any hard surface including painted concrete, bare concrete, or existing floor coverings. No removal or preparation required.

Do you offer free samples?

Yes! Request a free sample to check quality, colour, and texture before ordering. Visit our Free Samples page.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

7mm X-Joint Interlocking PVC Floor Tiles | Heavy-Duty Garage & Workshop Flooring | UK Manufacturer

7mm X-Joint Interlocking PVC Floor Tiles | Heavy-Duty Garage & Workshop Flooring | UK Manufacturer

(293)

From £15.90

Heavy-Duty 7mm PVC Floor Tiles – Engineered for Garage and workshop

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	1.8kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

7mm T-Joint E500 Interlocking PVC Floor Tiles | Heavy-Duty Industrial | Garage & Workshop | UK Stock

7mm T-Joint E500 Interlocking PVC Floor Tiles | Heavy-Duty Industrial | Garage & Workshop | UK Stock

(140)

From £17.99

Heavy-Duty 7mm PVC Floor Tiles – Engineered for Garage and workshop

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	1.8kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

🔩

No Adhesive Required

Click-together interlocking system. Install over any hard surface without glue or specialist tools.

🛡️

Chemical & Oil Resistant

Resists petrol, brake fluid, antifreeze, and common workshop chemicals. Spills wipe clean instantly.

🔄

Lift & Replace Anytime

Damaged tile? Lift it out, click a new one in. No need to redo the entire floor.

🏋️

Heavy Vehicle Rated

Engineered to support cars, vans, and heavier vehicles without cracking or warping.

🧹

Easy to Clean

Sweep, vacuum, or mop. No special cleaning products needed. Stains don't penetrate.

📐

Cut to Fit Any Space

Easily trimmed with a standard utility knife. Fits around pillars, corners, and irregular shapes.

About This Collection

Oil Proof Floor Tiles - Never Stain Again

Sick of oil stains ruining your garage floor? Our oil proof floor tiles are completely impervious to engine oil, transmission fluid, and grease. Spills sit on the surface and wipe away without a trace.

Complete Oil Protection

100% oil proof – Closed-cell construction prevents absorption
No staining – Wipes clean every time
All automotive fluids – Oil, transmission, brake, coolant, fuel
Grease resistant – Workshop lubricants won't damage tiles
Easy maintenance – Mop or pressure wash clean

Perfect For

Home garages
DIY workshops
Mechanics and service bays
Oil change facilities
Any vehicle maintenance area

Compare to Concrete

Concrete absorbs oil permanently. Paint and epoxy stain and peel. Our tiles are genuinely oil proof – the same tile will look new in 20 years with basic cleaning.

📖 Maintenance guide

🧮 Calculate your coverage

🎁 Free samples

🔒

Secure Checkout

256-bit SSL encrypted

🇬🇧

UK Based Company

Fast mainland delivery

⭐

Rated Excellent

By hundreds of customers

↩️

Easy Returns

30-day money back

Need Help Choosing the Right Tiles?

Our flooring specialists are here to help. Get expert advice, free samples, or a no-obligation quote.

Get a Free Quote Request Free Samples

By Type

By Application

Sectors

Features

Learn

Support

Oil & Grease Proof

Free UK Delivery

20+ Year Lifespan

DIY Install

Free Samples

Why Our Tiles Are Different

About This Collection

Oil Proof Floor Tiles - Never Stain Again

Complete Oil Protection

Perfect For

Compare to Concrete

Need Help Choosing the Right Tiles?

Oil & Grease Proof

Free UK Delivery

20+ Year Lifespan

DIY Install

Free Samples

Why Our Tiles Are Different

About This Collection

Oil Proof Floor Tiles - Never Stain Again

Complete Oil Protection

Perfect For

Compare to Concrete

Related Collections

Need Help Choosing the Right Tiles?
