Chemical Resistant Floor Tiles UK | Oil & Acid Proof

Oil & Chemical Resistant Garage Floor Tiles | 10mm PVC Workshop Flooring Diesel Proof | Acid & Solvent Safe Industrial UK

Oil & Chemical Resistant Garage Floor Tiles | 10mm PVC Workshop Flooring Diesel Proof | Acid & Solvent Safe Industrial UK

(210)

£21.50 £26.88

-20%

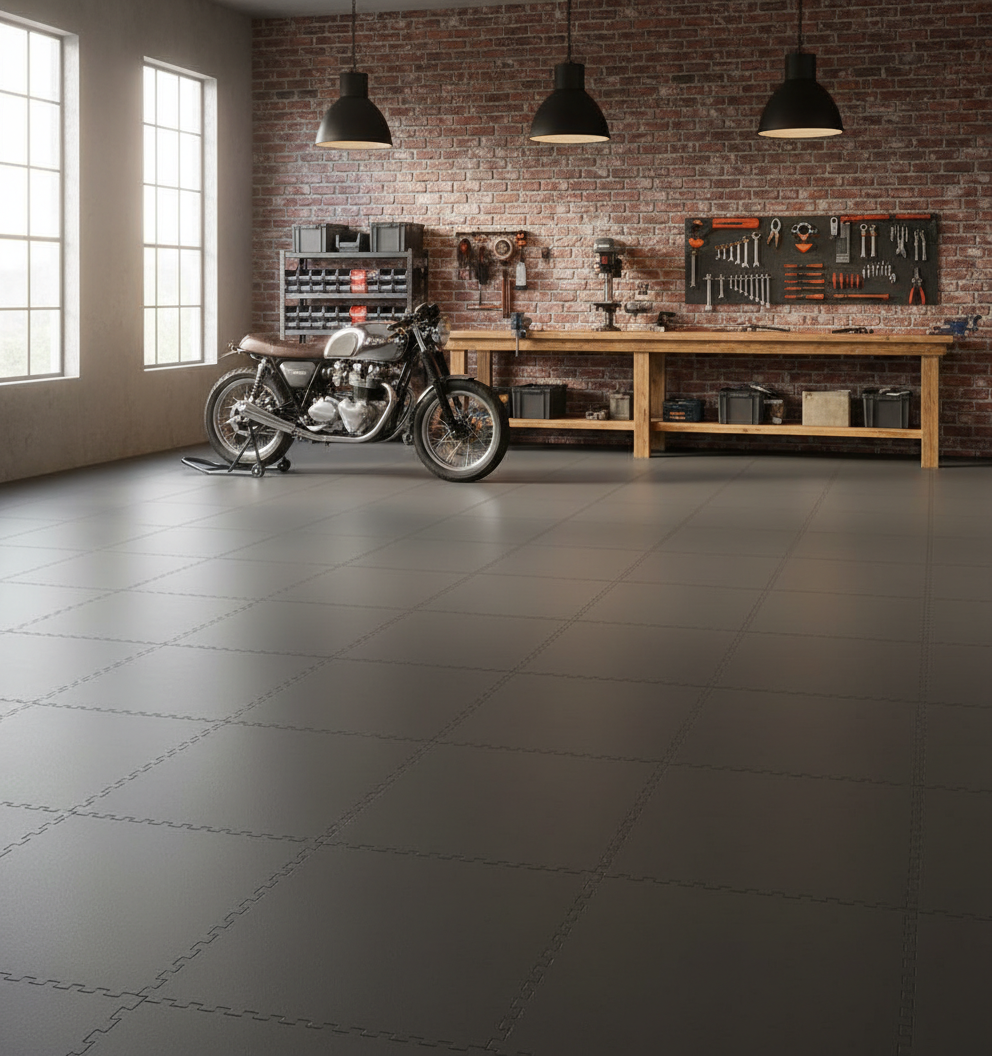

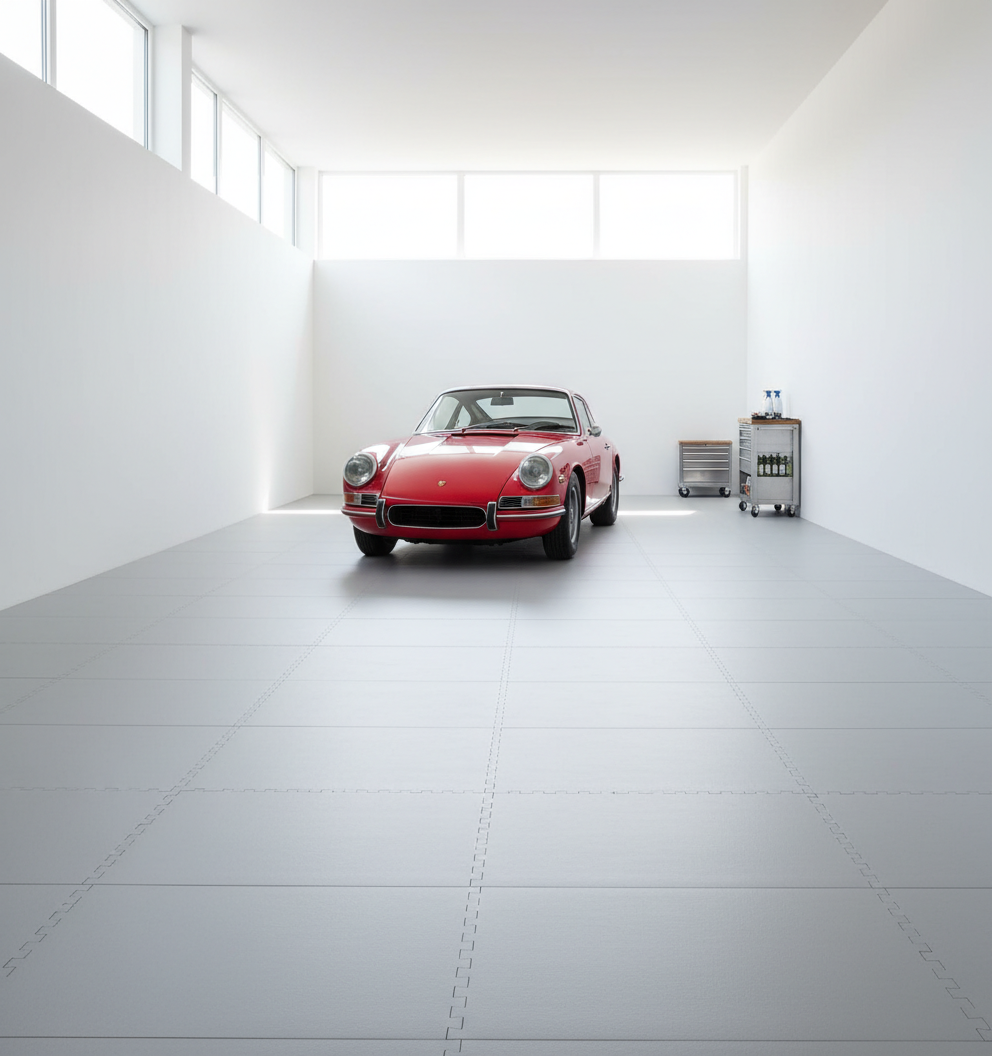

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Garage and workshop

When garage and workshop environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Garage and workshop: These tiles are specifically engineered for the demands of garage and workshop environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 5 days.

Aircraft Hangar Flooring Tiles 10mm PVC | Aviation Workshop Floor Protection | Jet Fuel Resistant 5T Load UK

Aircraft Hangar Flooring Tiles 10mm PVC | Aviation Workshop Floor Protection | Jet Fuel Resistant 5T Load UK

(272)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Aircraft hangar and aviation

When aircraft hangar and aviation environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance
Aviation Fuel (Jet-A, Avgas)	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Aircraft hangar and aviation: These tiles are specifically engineered for the demands of aircraft hangar and aviation environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 5 days.

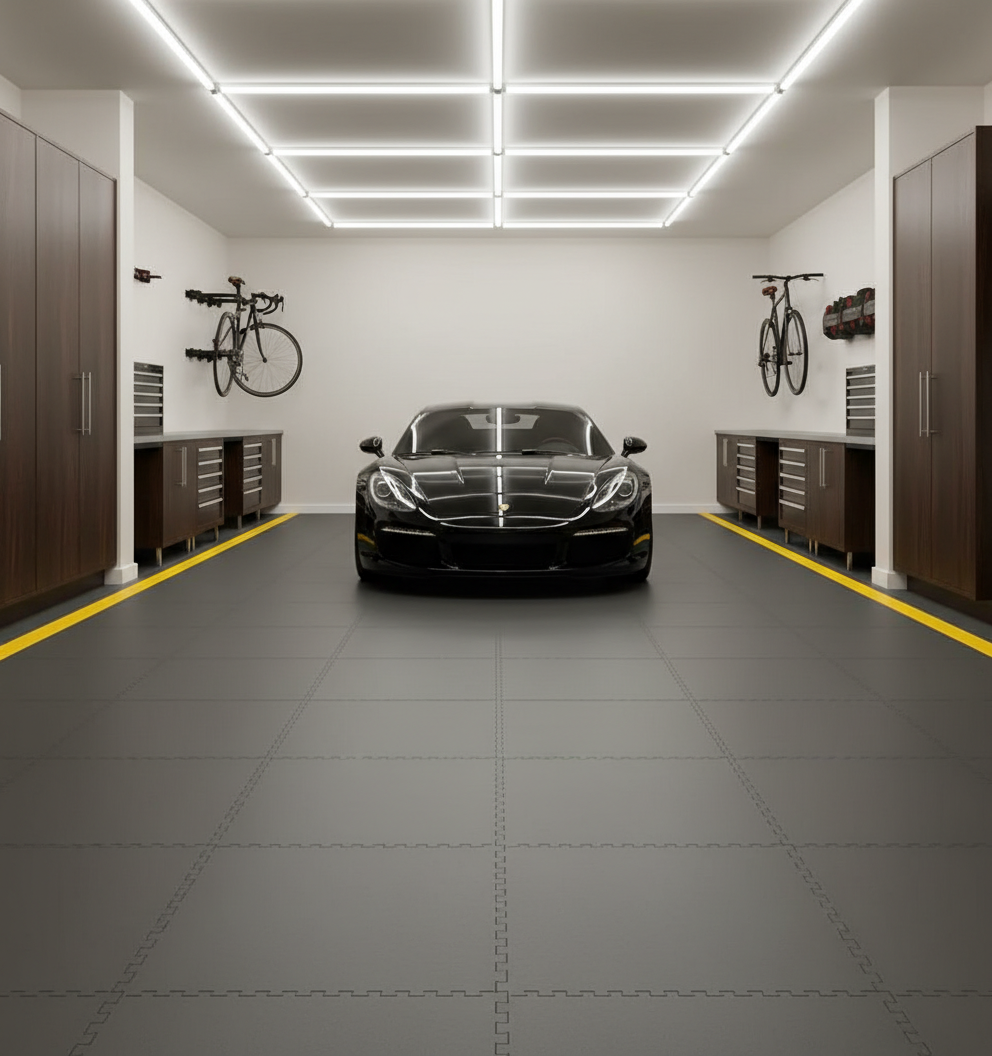

Fire Station Floor Tiles 10mm Heavy Duty | Appliance Bay Flooring Chemical Resistant | 5 Tonne Fire Engine Rated UK

Fire Station Floor Tiles 10mm Heavy Duty | Appliance Bay Flooring Chemical Resistant | 5 Tonne Fire Engine Rated UK

(294)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Fire station and emergency services

When fire station and emergency services environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Fire station and emergency services: These tiles are specifically engineered for the demands of fire station and emergency services environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 5 days.

Industrial Interlocking Floor Tiles 10mm | Heavy Duty PVC Warehouse & Factory Flooring | 5 Tonne Forklift Safe UK

Industrial Interlocking Floor Tiles 10mm | Heavy Duty PVC Warehouse & Factory Flooring | 5 Tonne Forklift Safe UK

(276)

£21.50 £26.88

-20%

Industrial-Grade 10mm Interlocking Floor Tiles – Warehouse & Factory Proven

When your warehouse or factory floor needs to withstand forklift traffic, heavy machinery, and 24/7 operations, these 5 tonnes rated industrial PVC tiles deliver the performance that concrete coatings cannot match. Installed in distribution centres, manufacturing plants, and logistics facilities across the UK – with zero operational downtime.

✓ 5 Tonnes Point Load | ✓ Forklift & HGV Rated | ✓ Zero Downtime Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm industrial grade
Point Load Rating	5 tonnes (BS EN ISO 24344 verified)
Rolling Load Capacity	20+ tonnes
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Classification	Bfl-s1 (EN 13501-1)
Chemical Resistance	Oils, hydraulic fluid, coolants, acids, solvents
Temperature Range	-20°C to +60°C continuous operation
Weight per Tile	2.5kg
Connection	Precision interlocking – no adhesive
Warranty	10 years commercial/industrial use

Engineered for Industrial Load Requirements

Industrial environments demand flooring that handles loads consumer products never face. Our 5 tonnes point load rating is independently verified to BS EN ISO 24344 – the European standard for measuring concentrated load resistance.

What Industrial Operations Require

Forklift traffic: Counterbalance forklifts up to 5 tonnes operating continuously
Pallet jacks: Manual and powered pallet trucks with full loads
Racking systems: Heavy-duty pallet racking with concentrated leg loads
Heavy machinery: Production equipment, CNC machines, presses
HGV access: Articulated lorries in loading bays
Rolling containers: Cages, stillages, and roll containers

Rolling Load Capacity: 20+ Tonnes

Beyond static point loads, industrial floors face continuous rolling traffic. Our tiles support rolling loads exceeding 20 tonnes – meaning fully-loaded forklifts, reach trucks, and powered pallet movers operate safely throughout their duty cycles.

Warehouse & Factory Applications

Distribution Centres

High-traffic pick zones, packing areas, and dispatch bays. Tiles withstand continuous forklift and pallet truck movement while providing anti-fatigue benefits for warehouse operatives.

Manufacturing Plants

Production floors, assembly lines, and machine shops. Chemical resistance handles coolants, cutting fluids, and hydraulic oil without degradation.

Logistics Facilities

Cross-dock operations, sortation areas, and loading bays. Quick installation means new facilities come online faster; section repairs take minutes not days.

Food & Beverage Production

Hygienic surface cleans easily. Chemical resistance handles sanitisers and cleaning agents. Closed-cell construction prevents bacterial harbourage.

Automotive & Engineering

Machine shops, component assembly, and quality inspection areas. Oil and coolant resistance essential for metalworking environments.

Zero Downtime Installation: Operational Continuity

Traditional industrial flooring (epoxy, resin, polished concrete) requires facility shutdown. Our interlocking tiles install during operations – section by section if needed.

Installation Advantages

No cure time: Walk and work on tiles immediately after installation
Section-by-section: Install overnight or during quiet periods
No grinding: Install over existing concrete, epoxy, or painted floors
No moisture testing: Install on new or damp concrete
DIY or contractor: Simple enough for facilities teams, scalable for contractors

Installation Speed

A two-person team installs approximately 100m² per day. A 1,000m² warehouse floor completes in under two weeks with minimal operational disruption.

Phased Installation

Install one zone while operations continue in another. Racking areas overnight. Picking zones during weekends. Loading bays during quiet shifts. No full facility shutdown required.

Chemical Resistance for Industrial Environments

Industrial floors face chemical exposure that destroys standard flooring. Our closed-cell PVC construction provides complete barrier protection.

Verified Resistance

Hydraulic Oil	✓ Full Resistance
Cutting Fluids & Coolants	✓ Full Resistance
Diesel & Lubricants	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance
Cleaning Chemicals	✓ Full Resistance
Solvents (short exposure)	✓ Full Resistance

Spill Management

Fluids stay on surface for easy cleanup. No absorption into flooring substrate. No permanent staining. Spill response is simple – contain, absorb, clean.

UK Industrial Compliance

Fire Safety: Bfl-s1

Classified to EN 13501-1:

B: Limited contribution to fire spread
fl: Flooring-specific rating
s1: Minimal smoke production

Meets Building Regulations and insurance requirements for industrial premises. Fire certificates available for compliance documentation.

Slip Resistance: R10

Rated to DIN 51130 for slip resistance with oil contamination. Meets HSE workplace safety requirements. Suitable for areas with water, oil, or coolant exposure.

Load Certification

BS EN ISO 24344 test certificates available for:

Insurance compliance
HSE inspections
Building control sign-off
Client/customer audits

Material Engineering: Industrial-Grade Construction

Virgin PVC Compound

100% virgin PVC – not recycled material with inconsistent properties. Every batch delivers identical chemical resistance, load performance, and dimensional stability.

Closed-Cell Architecture

Complete fluid barrier. No absorption of oils, coolants, or chemicals. No swelling or degradation over time. Maintains performance throughout 20+ year lifespan.

10mm Thickness

Industrial-grade thickness provides:

Maximum load distribution
Impact absorption for dropped items
Anti-fatigue properties for standing workers
Thermal insulation from cold concrete

Precision Interlocking

Engineered connection system creates stable floor plane under forklift traffic. No tile separation or edge lifting under continuous rolling loads.

Industrial Cost Analysis

Price Per Square Metre

At £21.50 per tile: £86 per m² (4 tiles per m²)

Typical Project Costs

500m² zone: £43,000
1,000m² warehouse: £86,000
2,500m² facility: £215,000

Free UK delivery on all orders. Volume discounts available – contact for quote.

Total Cost of Ownership

Over 20 years:

PVC tiles: £86/m² = £4.30/m²/year
Epoxy (3 recoats): £200/m² total = £10/m²/year
Polished concrete + repairs: £150/m² total = £7.50/m²/year

ROI Factors

Zero downtime: No lost production during installation
Phased install: Spread CAPEX across financial periods
Section repairs: Replace damaged tiles, not entire floor
Relocatable: Move to new facility if required

Industrial Maintenance Protocol

Daily

Sweep or machine-scrub traffic areas
Spot-clean spills immediately

Weekly

Machine scrub or mop with industrial cleaner
Inspect high-traffic zones for damage

As Required

Replace damaged tiles (2 minutes per tile)
Pressure wash heavily contaminated areas

Never Required

No resealing
No recoating
No grinding
No specialist treatments

Frequently Asked Questions

Can forklifts operate on these tiles?

Yes. The 5 tonnes point load and 20+ tonnes rolling load ratings mean counterbalance forklifts, reach trucks, and powered pallet movers operate safely. Tiles are specifically designed for industrial MHE traffic.

Can we install without stopping operations?

Yes. Section-by-section installation allows operations to continue in adjacent areas. Many clients install overnight, during weekends, or during quiet shifts with no facility shutdown.

What substrate preparation is required?

Minimal. Sweep clean and install. Tiles lay over existing concrete, epoxy, or painted floors. No grinding, priming, or moisture testing required. Surface imperfections up to 3mm are acceptable.

Do you provide load test certificates?

Yes. BS EN ISO 24344 test certificates are available for insurance compliance, HSE inspections, and customer audits. Fire rating (Bfl-s1) and slip rating (R10) documentation also available.

How do tiles perform with hydraulic oil exposure?

Excellent. Closed-cell PVC provides complete barrier protection against hydraulic oil, cutting fluids, coolants, and lubricants. Fluids stay on surface for easy cleanup with no absorption or degradation.

What's the installation rate?

A two-person team installs approximately 100m² per day. A 1,000m² warehouse floor completes in under two weeks. Larger teams scale proportionally.

Can tiles be relocated to a new facility?

Yes. No adhesive means tiles lift up and reinstall elsewhere. Valuable if leasing premises or planning future relocation. The floor is an asset, not a fixture.

What happens if a tile is damaged?

Replace the individual tile in approximately 2 minutes. Lift surrounding tiles, remove damaged unit, click in replacement. No contractors, no curing, no operational disruption.

Do you offer volume discounts?

Yes. Contact us for project pricing on orders over 500m². We provide formal quotations for facilities managers, procurement teams, and contractors.

Can we get samples for evaluation?

Yes. Free samples available for quality assessment, load testing, and stakeholder approval. Visit our Free Samples page or contact us directly.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 5 days.

7mm Heavy-Duty Interlocking PVC Garage Floor Tiles | Industrial Grade | UK Stock

7mm Heavy-Duty Interlocking PVC Garage Floor Tiles | Industrial Grade | UK Stock

(374)

From £17.90

7mm Heavy-Duty Garage Floor Tiles – Professional Results, Practical Thickness

The 7mm thickness delivers the perfect balance of performance and value for domestic garages and light commercial workshops. All the benefits of heavy-duty PVC interlocking tiles – oil resistance, easy installation, 20-year lifespan – at a thickness optimised for typical garage use.

✓ Heavy-Duty Load Rating | ✓ Oil & Chemical Resistant | ✓ DIY Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	Heavy-duty (verified to BS EN ISO 24344)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated)
Fire Rating	Bfl-s1 (EN 13501-1)
Chemical Resistance	Oils, fuels, coolant, brake fluid
Temperature Range	-20°C to +60°C
Connection	Precision interlocking – no adhesive
Warranty	10 years

7mm vs 10mm: Which Thickness Do You Need?

Choose 7mm When:

Primary use is domestic garage (car storage, DIY, light workshop)
Traffic is mainly foot traffic and occasional vehicle movement
Equipment is standard garage tools, not industrial machinery
Budget efficiency is a priority
Clearance under garage doors is limited

Choose 10mm When:

Heavy equipment or machinery will be used
Forklift or HGV traffic is expected
Maximum impact absorption is required
Commercial or industrial application

Why 7mm Is Ideal for Most Garages

Most UK domestic garages don't need industrial-grade 10mm tiles. The 7mm thickness handles:

Car and motorcycle storage: Daily driving in and out
Trolley jacks and axle stands: Routine maintenance tasks
Tool chests and workbenches: Standard garage equipment
Dropped tools: Impact absorption for everyday accidents

The 7mm profile also provides practical advantages:

Door clearance: Less likely to interfere with garage doors
Transition height: Smaller step at doorways
Cost efficiency: Lower material cost for same coverage

Complete Oil & Chemical Protection

The 7mm tiles use identical closed-cell PVC construction as our 10mm range – providing complete fluid barrier protection:

Engine Oil	✓ Full Resistance
Brake Fluid	✓ Full Resistance
Coolant	✓ Full Resistance
Petrol & Diesel	✓ Full Resistance
Degreasers	✓ Full Resistance

DIY Installation in Hours

What You Need

Broom
Tape measure
Utility knife

Installation Steps

Sweep garage floor clean
Start in corner, work outward
Click tiles together by hand
Cut edge tiles with utility knife
Install ramp edges at door

Time Required

Single garage: 1.5-2 hours | Double garage: 2-3 hours

UK Compliance

Fire Rating: Bfl-s1

Meets EN 13501-1 requirements for commercial and domestic premises.

Slip Rating: R10

Anti-slip surface rated to DIN 51130. Safe when wet or oily.

Cost Analysis

7mm tiles offer excellent value for domestic applications:

Single garage (15m²): Approx. £XXX
Double garage (30m²): Approx. £XXX

20+ year lifespan means cost per year is minimal compared to paint or epoxy alternatives requiring regular reapplication.

Maintenance

Weekly sweep and mop
Wipe oil spills immediately
No sealing or waxing required
Pressure wash for deep cleaning

Frequently Asked Questions

Is 7mm thick enough for a garage?

Yes. 7mm is ideal for most domestic garages handling car storage, DIY work, and standard garage equipment. Only upgrade to 10mm if you have heavy machinery or commercial/industrial loads.

Can I drive my car on 7mm tiles?

Absolutely. 7mm tiles are designed for vehicle traffic. Cars, motorcycles, and vans drive on and off daily without any damage to the tiles.

Will a trolley jack damage 7mm tiles?

No. Standard trolley jacks and axle stands work fine on 7mm tiles. The load rating handles typical garage maintenance equipment without compression damage.

Do 7mm tiles have the same oil resistance as 10mm?

Yes. Both use identical closed-cell PVC construction. Oil resistance, chemical resistance, and fluid barrier properties are the same regardless of thickness.

Will 7mm tiles clear my garage door?

Usually yes. The 7mm profile is less likely to interfere with garage door clearance than thicker alternatives. Measure your current clearance – 7mm plus optional ramp edge is typically 10-15mm total.

Can I mix 7mm and 10mm tiles?

Not recommended. Different thicknesses create a step hazard. Choose one thickness for your entire floor for safety and appearance.

How long do 7mm tiles last?

20+ years with normal garage use. The virgin PVC construction and UV stability ensure long-term performance without degradation.

Are 7mm tiles slippery?

No. R10 anti-slip rating means the textured surface maintains grip even when wet or contaminated with oil.

Can I install over painted concrete?

Yes. Tiles install over any hard surface including painted concrete, bare concrete, or existing floor coverings. No removal or preparation required.

Do you offer free samples?

Yes! Request a free sample to check quality, colour, and texture before ordering. Visit our Free Samples page.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

10mm Ultra Heavy-Duty Interlocking PVC Floor Tiles | Forklift & HGV Rated | Warehouse & Industrial | UK Stock

10mm Ultra Heavy-Duty Interlocking PVC Floor Tiles | Forklift & HGV Rated | Warehouse & Industrial | UK Stock

(335)

£21.50

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Forklift and heavy equipment

When forklift and heavy equipment environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from loaded forklifts and heavy MHE equipment without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Loaded forklift traffic and pallet jack operations
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Forklift and heavy equipment: These tiles are specifically engineered for the demands of forklift and heavy equipment environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for forklifts, pallet jacks, and heavy MHE.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 5 days.

7mm X-Joint Interlocking PVC Floor Tiles | Heavy-Duty Garage & Workshop Flooring | UK Manufacturer

7mm X-Joint Interlocking PVC Floor Tiles | Heavy-Duty Garage & Workshop Flooring | UK Manufacturer

(293)

From £15.90

Heavy-Duty 7mm PVC Floor Tiles – Engineered for Garage and workshop

When garage and workshop environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	1.8kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Garage and workshop: These tiles are specifically engineered for the demands of garage and workshop environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 5 days.

7mm T-Joint E500 Interlocking PVC Floor Tiles | Heavy-Duty Industrial | Garage & Workshop | UK Stock

7mm T-Joint E500 Interlocking PVC Floor Tiles | Heavy-Duty Industrial | Garage & Workshop | UK Stock

(140)

From £17.99

Heavy-Duty 7mm PVC Floor Tiles – Engineered for Garage and workshop

When garage and workshop environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	1.8kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Garage and workshop: These tiles are specifically engineered for the demands of garage and workshop environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+5

In stock

Receives in 5 days.

By Type

By Application

Sectors

Features

Learn

Support

Chemical Resistant

Free UK Delivery

20+ Year Lifespan

DIY Install

Free Samples

Why Our Tiles Are Different

About This Collection

Chemical Resistant Floor Tiles - Complete Fluid Protection

Tested Chemical Resistance

Applications

Easy Maintenance

Need Help Choosing the Right Tiles?

Chemical Resistant

Free UK Delivery

20+ Year Lifespan

DIY Install

Free Samples

Why Our Tiles Are Different

About This Collection

Chemical Resistant Floor Tiles - Complete Fluid Protection

Tested Chemical Resistance

Applications

Easy Maintenance

Related Collections

Need Help Choosing the Right Tiles?
