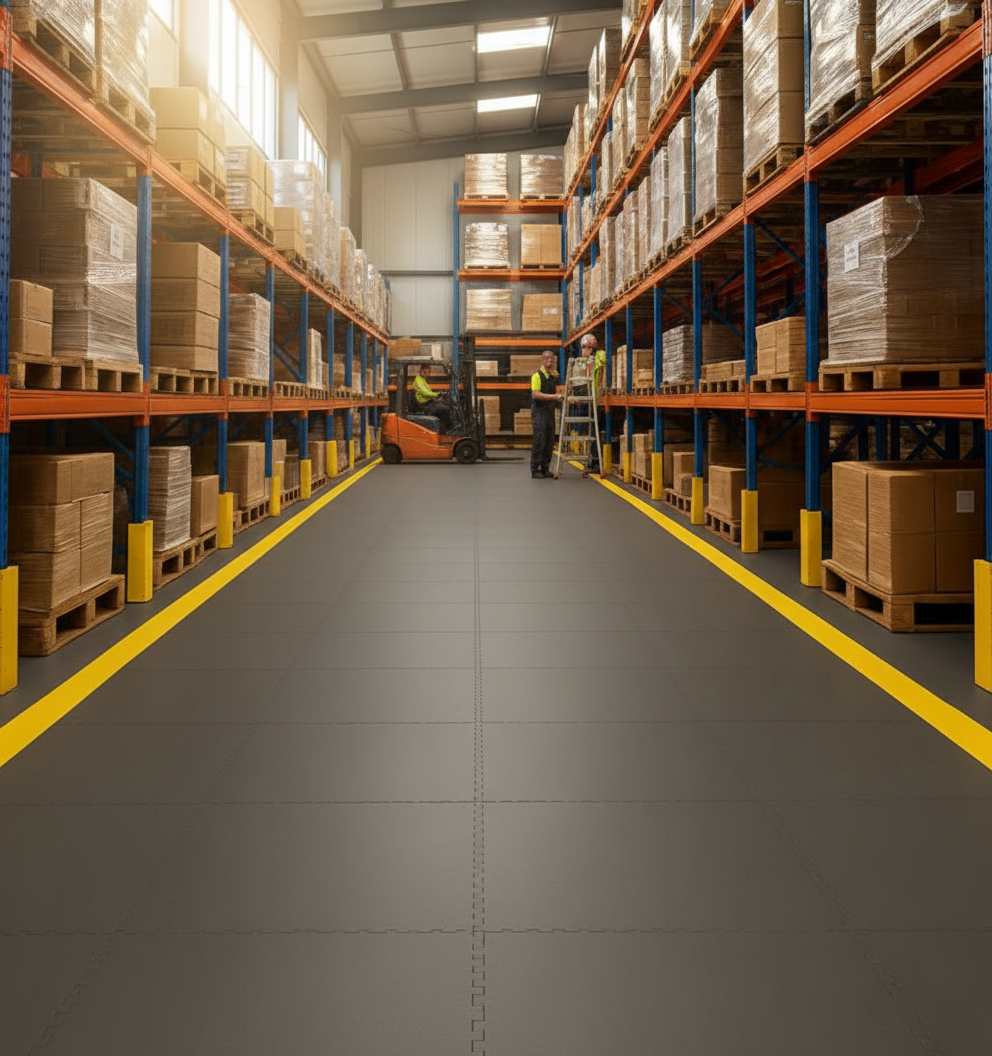

Heavy Machinery Floor Tiles - Vibration Dampening
£19.90
Estimated delivery between April 16 and April 18.
£19.90
£19.90
Heavy Machinery Floor Tiles – Professional-Grade UK Flooring
Transform your heavy machinery environment with these 5 tonnes rated heavy-duty PVC interlocking floor tiles. Engineered for demanding UK commercial and industrial applications where vibration dampening performance is essential.
✓ 5 Tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Downtime Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery
Technical Specifications
| Tile Dimensions | 500mm × 500mm (4 tiles per m²) |
| Thickness | 10mm heavy-duty |
| Load Rating | 5 tonnes point load (BS EN ISO 24344) |
| Material | Virgin PVC, closed-cell construction |
| Surface Finish | Anti-slip textured (R10 rated to DIN 51130) |
| Fire Rating | Bfl-s1 (EN 13501-1 compliant) |
| Chemical Resistance | Oils, fuels, hydraulic fluid, coolants, acids |
| Temperature Range | -20°C to +60°C continuous use |
| Connection | Precision interlocking – no adhesive required |
| Warranty | 10 years commercial use |
Engineered for Heavy Machinery Applications
These tiles are specifically designed for heavy machinery environments, handling the unique combination of loads, chemicals, and operational requirements these facilities demand.
Key Performance Features
- 5 tonnes point load: Support for heavy equipment, vehicles, and machinery
- Chemical barrier: Complete protection against oils, fuels, and industrial fluids
- Anti-slip surface: R10 rated for safety even when contaminated
- Zero cure time: Install and operate immediately
- Section repairs: Replace individual tiles without floor closure
Load Rating: BS EN ISO 24344 Verified
Our 5 tonnes point load rating is independently verified to British/European standards. This means:
- Vehicle lifts and jacks: Full support for maintenance equipment
- Heavy machinery: Industrial equipment bases and mounting points
- Rolling loads 20+ tonnes: Forklift and vehicle traffic
- Static equipment: Workbenches, racking, and storage systems
Chemical Resistance
Closed-cell PVC construction provides complete barrier protection:
| Engine & Hydraulic Oil | ✓ Full Resistance |
| Brake Fluid & Coolant | ✓ Full Resistance |
| Diesel & Petrol | ✓ Full Resistance |
| Industrial Degreasers | ✓ Full Resistance |
| Cutting Fluids | ✓ Full Resistance |
UK Compliance
Fire Rating: Bfl-s1
EN 13501-1 compliant. Meets Building Regulations and insurance requirements.
Slip Resistance: R10
DIN 51130 rated. HSE compliant for workplace safety.
Installation
- Sweep floor clean
- Click tiles together from corner outward
- Cut edges with utility knife
- Use immediately – no cure time
50m² in 2-3 hours with two people. No specialist tools or contractors required.
PVC Tiles vs Alternatives
| Factor | PVC Tiles | Epoxy | Paint |
|---|---|---|---|
| Install Time | Hours | Days | Days |
| Cure Time | Zero | 72+ hrs | 24+ hrs |
| DIY | Yes | No | Limited |
| Repairs | Replace tile | Recoat all | Repaint |
| Lifespan | 20+ years | 5-10 years | 1-3 years |
Maintenance
- Sweep and mop weekly
- Degrease as needed
- Pressure wash for deep cleaning
- No sealing or waxing required
Frequently Asked Questions
What load rating do these tiles support?
5 tonnes point load (BS EN ISO 24344 verified) and 20+ tonnes rolling load capacity. Suitable for heavy equipment, vehicle lifts, and industrial machinery.
Can I install over existing flooring?
Yes. Install over concrete, existing tiles, painted floors, or damaged surfaces. Simply sweep clean – no preparation required.
How long does installation take?
Approximately 50m² in 2-3 hours with two people. No specialist tools required – tiles click together by hand.
Are these tiles oil resistant?
Yes. Closed-cell PVC provides complete barrier protection against oils, fuels, coolants, and industrial chemicals.
Do these tiles meet fire regulations?
Yes. Bfl-s1 rated to EN 13501-1, meeting UK Building Regulations and commercial insurance requirements.
What if a tile gets damaged?
Replace individual tiles in under 2 minutes. No need to replace the entire floor or call contractors.
Are these tiles slippery when wet?
No. R10 anti-slip rating ensures safe grip even when wet or contaminated with oil.
Can I relocate the tiles?
Yes. No adhesive means tiles lift up and reinstall at new premises.
What warranty is included?
10-year commercial warranty covering manufacturing defects and performance.
Do you offer samples?
Yes! Free samples available. Visit our Free Samples page to request yours.
📚 Helpful Resources
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →
Authenticity Guaranteed
We only sell authentic products from verified brand partners and retail partners globally.
Coverage Calculator
Enter your floor dimensions to find out how many tiles you need
* Includes 5% extra for cuts and wastage. Actual requirements may vary.
How to Install Your Tiles
Frequently Asked Questions
Use our coverage calculator above. Simply enter your garage length and width in metres, and we'll calculate exactly how many tiles you need — including 5% extra for cuts and wastage.
No! Our interlocking tiles simply click together without any adhesive, glue, or specialist tools. They can be laid directly over concrete, screed, or existing flooring.
Absolutely. Our heavy-duty PVC tiles are rated to withstand the weight of cars, vans, and even heavier vehicles. They won't crack, chip, or deform under normal vehicle use.
Simply lift out the damaged tile and click a new one in its place. No need to redo the surrounding tiles or the entire floor. Individual replacement takes under a minute.
Yes. Our tiles are resistant to petrol, diesel, brake fluid, antifreeze, and most common workshop chemicals. Spills sit on the surface and wipe clean easily.
Yes! We offer free samples so you can see and feel the quality before you buy. Visit our Free Samples page to request yours.
